K-Type (2.92mm) mmWave Connector
2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.
For high-frequency SMA RF connector applications, we provide alternative solutions such as 3.5mm connectors and 2.92mm connectors. Our 3.5mm/2.92mm mmWave connectors/adapters share the same 1/4-36 UNS thread dimensions as SMA connectors/adapters, ensuring full compatibility and interchangeability. The 3.5mm connector supports frequencies up to 35 GHz, while the 2.92mm connector can operate at frequencies up to 40 GHz.

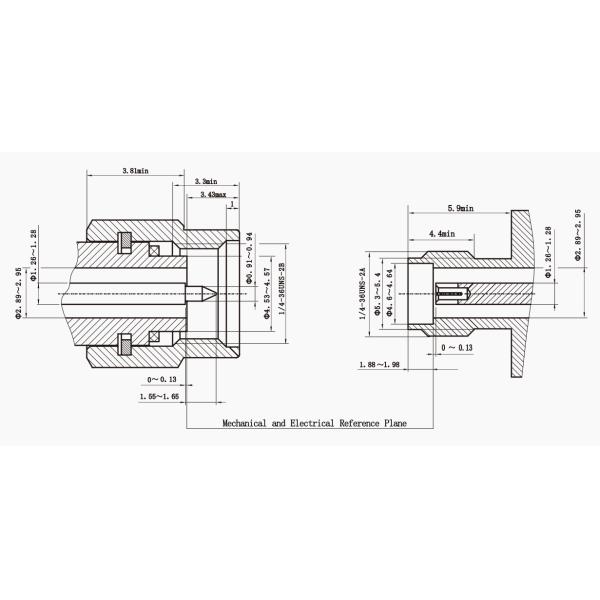

2.92mm RF Connectors (K Type) Interface Dimenstion:
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | 0.04GHz~40GHz |
| Rated Voltage | 250V |
| Dielectrics Voltage-resistance | 750V |
| Insulation Resistance | ≥ 5000 MΩ |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Copper Alloy, gold plated |
| Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass, stainless steel | Gold plated or Passivation |
| Insulators | Glass sintering / PTFE / PEI |
| Temperature | -55℃ ~ +125℃ |
Outline Dimension of 4 holes Flange Mount Stainless Steel 2.92mmWave Connectors female : K-KFD138G (Unit: mm)
Outline Dimension of 4 Holes Flange Mount Stainless Steel 2.92mm Wave Connectors female : K-KFD137G (Unit: mm)
More 2.92mm Connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available
